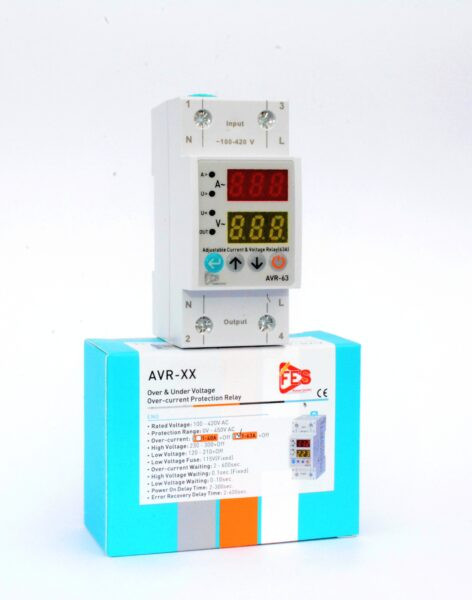

FES OVER AND UNDER VOLTAGE AND CURRENT PROTECTION RELAY PAKISTAN

FES 63A OVER AND UNDER VOLTAGE AND CURRENT PROTECTION RELAY PAKISTAN Home protection 63A 220V DIN rail voltage adjustable device describe A surge protector like this is manufactured by the well-known brand Mora and is an electrical appliance or device designed to protect electrical equipment from voltage spikes and current spikes. Surge protectors try to limit the voltage supplied to electronic devices by blocking or short-circuiting to ground any unwanted voltage above the safety thresholdFES 63A OVER AND UNDER VOLTAGE AND CURRENT PROTECTION RELAY PAKISTANRated working current: 63AOvervoltage protection value: AC 230V-AC 275V; the factory default is 275VUndervoltage protection value: AC 160V-AC 220V; factory default is 175VAutomatic shutdown delay: 0-30 seconds; the factory default is 30 secondsOvercurrent protection value: 0-40A; factory default is 40AEffective voltage display range 70-400VEffective current display range 0-99.9ACan withstand lightning surge voltage in the 5kV range8 Modular contour design and rail installationRated working voltage: AC 230V, 50HzMaximum short-circuit withstand current: 3000A below 40A, 4500A above 50A (action time 10ms)Action time: 0-30 seconds; the factory default is 30 secondsOwn power consumption <1.5 wattsMechanical life of motor: >100,000 timesDimensions: 80 x 37 x 66 mm (length x width x height)Ambient temperature = standardWorking environment temperature range: -25℃～55℃Relative humidity: 45-90% RH: 40 CLatitude: <2000mPollution degree: Level 2The package includes:1x surge VA protector
